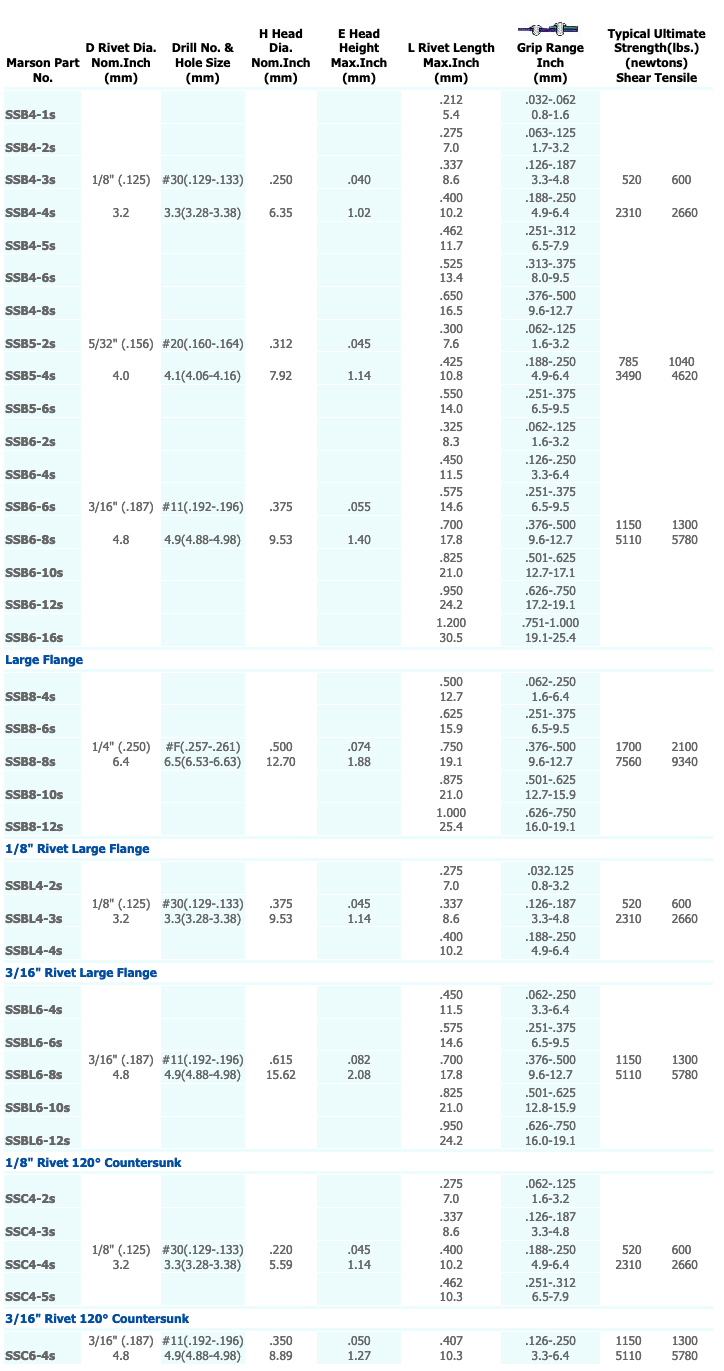

Stainless/Steel Rivets




Marson Part No. D Rivet Dia. Nom.Inch
(mm)
Drill No. & Hole Size
(mm)
H Head Dia. Nom.Inch
(mm)
E Head Height Max.Inch
(mm)
L Rivet Length Max.Inch
(mm)

Grip Range Inch
(mm)
Typical Ultimate Strength(lbs.)
(newtons)
Shear Tensile
SSB4-1s         .212
5.4
.032-.062
0.8-1.6

SSB4-2s         .275
7.0
.063-.125
1.7-3.2

SSB4-3s 1/8" (.125) #30(.129-.133) .250 .040 .337
8.6
.126-.187
3.3-4.8
520        600
SSB4-4s 3.2 3.3(3.28-3.38) 6.35 1.02 .400
10.2
.188-.250
4.9-6.4
2310        2660
SSB4-5s         .462
11.7
.251-.312
6.5-7.9

SSB4-6s         .525
13.4
.313-.375
8.0-9.5

SSB4-8s         .650
16.5
.376-.500
9.6-12.7

SSB5-2         .300
7.6
.062-.125
1.6-3.2

SSB5-3 5/32" (.156)
4.0
#20(.160-.164)
4.1(4.06-4.16)
.312
7.92
.045
1.14
.362
9.2
.126-.187
3.3-4.8
785        1040
3490        4620
SSB5-4         .425
10.8
.188-.250
4.9-6.4

SSB5-6         .550
14.0
.251-.375
6.5-9.5

SSB5-8         .675
17.2
.376-.500
9.6-12.7

SSB5-10         .800
20.3
.501-.625
12.8-15.9

SSB6-2         .325
8.3
.062-.125
1.6-3.2

SSB6-4         .450
11.5
.126-.250
3.3-6.4

SSB6-6 3/16" (.187)
4.8
#11(.192-.196)
4.9(4.88-4.98)
.375
9.53
.066
1.40
.575
14.6
.251-.375
6.5-9.5
1150        1300
5110        5780
SSB6-8         .700
17.8
.376-.500
9.6-12.7

SSB6-10         .825
21.0
.501-.625
12.7-17.1

SSB6-12         .950
24.2
.626-.750
17.2-19.1

SSB6-16         1.200
30.5
.751-1.000
19.1-25.4

Large Flange
SSBL4-2 1/8" (.125)
3.2
#30(.129-.133)
3.3(3.28-3.38)
.375
9.53
.045
1.14
.275
7.0
.032-.125
0.8-3.2
520        600
2310        2660
SSBL4-3         .337
8.6
.126-.187
3.3-4.8

SSBL4-4         .400
10.2
.188-.250
4.9-6.4

SSBL6-4         .450
11.5
.062-.250
3.3-6.4

SSBL6-6 3/16" (.187)
4.8
#11(.192-.196)
4.9(4.88-4.98)
.615
15.62
.082
2.08
.575
14.6
.251-.375
6.5-9.5
1150        1300
5110        5780
SSBL6-8         .700
17.8
.376-.500
9.6-12.7

SSBL6-10         .825
21.0
.501-.625
12.8-15.9

SSBL6-12         .950
24.2
.626-.750
16.0-19.1

120° Contersunk
SSC4-2         .275
7.0
.062-.125
1.6-3.2

SSC4-3 1/8" (.125)
3.2
#30(.129-.133)
3.3(3.28-3.38)
.220
5.59
.045
1.14
.337
8.6
.126-.187
3.3-4.8
520        600
2310        2660
SSC4-4         .400
10.2
.188-.250
4.9-6.4

SSC4-5         .462
10.3
.251-.312
6.5-7.9

SSC6-4 3/16" (.187)
4.8
#11(.192-.196)
4.9(4.88-4.98)
.350
8.89
.050
1.27
.407
10.3
.126-.250
3.3-6.4
1150        1300
5110        5780
