Copper/Brass Rivets

Buttonhead #110 Copper Body · Brass Mandrel · IFI Grade 20

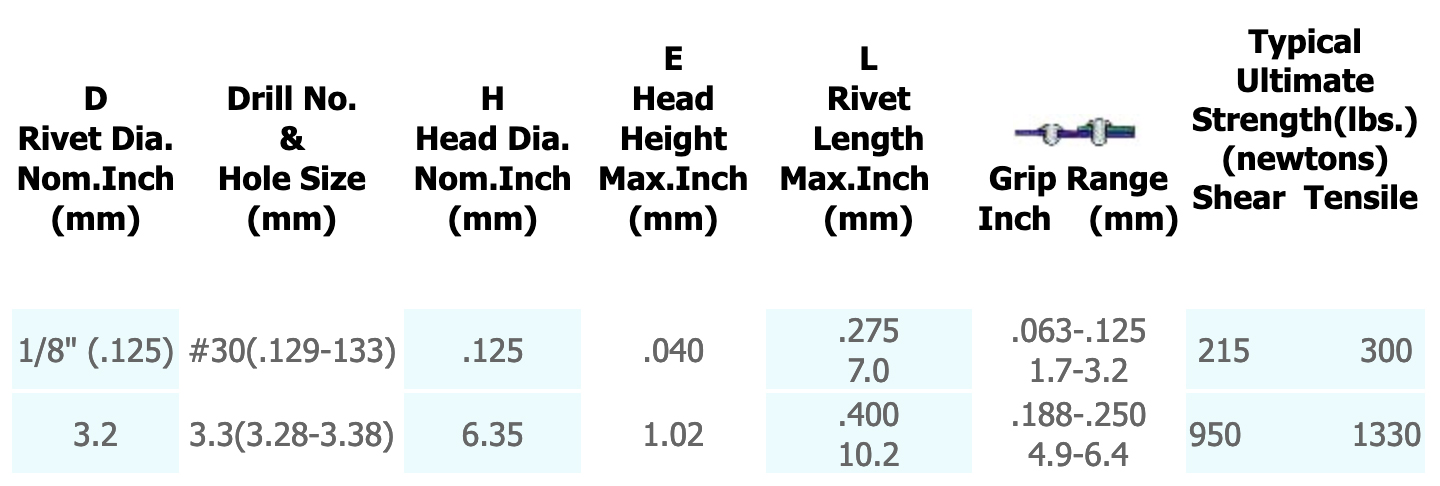

D
Rivet Dia.
Nom.Inch

(mm)
Drill No.
&
Hole Size
(mm)
H
Head Dia.
Nom.Inch

(mm)
E
Head
Height
Max.Inch

(mm)
L
Rivet
Length
Max.Inch
(mm)


Grip Range
Inch
    (mm)

Typical Ultimate
Strength(lbs.)

(newtons)
Shear  Tensile


1/8" (.125)
#30(.129-133)
.125
.040
.275
7.0
.063-.125
1.7-3.2
215           300
3.2 3.3(3.28-3.38) 6.35 1.02 .400
10.2
.188-.250
4.9-6.4
950           1330
