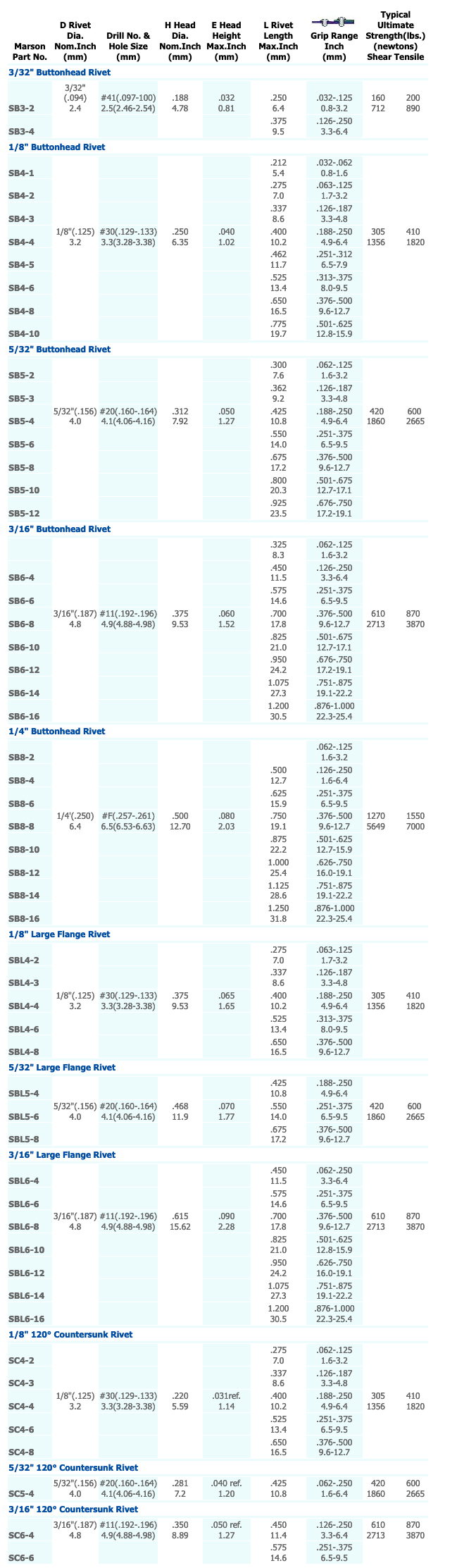

Aluminum/Steel Rivets




Marson Part No. D Rivet Dia. Nom.Inch
(mm)		 Drill No. & Hole Size
(mm)		 H Head Dia. Nom.Inch
(mm)		 E Head Height Max.Inch
(mm)		 L Rivet Length Max.Inch
(mm)
Grip Range Inch
(mm)		 Typical Ultimate Strength(lbs.)
(newtons)
Shear Tensile
3/32" Buttonhead Rivet
SB3-2 3/32"(.094)
2.4		 #41(.097-100)
2.5(2.46-2.54)		 .188
4.78		 .032
0.81		 .250
6.4		 .032-.125
0.8-3.2		 160        200
712        890
SB3-4         .375
9.5		 .126-.250
3.3-6.4
1/8" Buttonhead Rivet
SB4-1         .212
5.4		 .032-.062
0.8-1.6
SB4-2         .275
7.0		 .063-.125
1.7-3.2
SB4-3         .337
8.6		 .126-.187
3.3-4.8
SB4-4 1/8"(.125)
3.2		 #30(.129-.133)
3.3(3.28-3.38)		 .250
6.35		 .040
1.02		 .400
10.2		 .188-.250
4.9-6.4		 305        410
1356        1820
SB4-5         .462
11.7		 .251-.312
6.5-7.9
SB4-6         .525
13.4		 .313-.375
8.0-9.5
SB4-8         .650
16.5		 .376-.500
9.6-12.7
SB4-10         .775
19.7		 .501-.625
12.8-15.9
5/32" Buttonhead Rivet
SB5-2         .300
7.6		 .062-.125
1.6-3.2
SB5-3         .362
9.2		 .126-.187
3.3-4.8
SB5-4 5/32"(.156)
4.0		 #20(.160-.164)
4.1(4.06-4.16)		 .312
7.92		 .050
1.27		 .425
10.8		 .188-.250
4.9-6.4		 420        600
1860        2665
SB5-6         .550
14.0		 .251-.375
6.5-9.5
SB5-8         .675
17.2		 .376-.500
9.6-12.7
SB5-10         .800
20.3		 .501-.675
12.7-17.1
SB5-12         .925
23.5		 .676-.750
17.2-19.1
3/16" Buttonhead Rivet
          .325
8.3		 .062-.125
1.6-3.2
SB6-4         .450
11.5		 .126-.250
3.3-6.4
SB6-6         .575
14.6		 .251-.375
6.5-9.5
SB6-8 3/16"(.187)
4.8		 #11(.192-.196)
4.9(4.88-4.98)		 .375
9.53		 .060
1.52		 .700
17.8		 .376-.500
9.6-12.7		 610        870
2713        3870
SB6-10         .825
21.0		 .501-.675
12.7-17.1
SB6-12         .950
24.2		 .676-.750
17.2-19.1
SB6-14         1.075
27.3		 .751-.875
19.1-22.2
SB6-16         1.200
30.5		 .876-1.000
22.3-25.4
1/4" Buttonhead Rivet
SB8-2           .062-.125
1.6-3.2
SB8-4         .500
12.7		 .126-.250
1.6-6.4
SB8-6         .625
15.9		 .251-.375
6.5-9.5
SB8-8 1/4"(.250)
6.4		 #F(.257-.261)
6.5(6.53-6.63)		 .500
12.70		 .080
2.03		 .750
19.1		 .376-.500
9.6-12.7		 1270        1550
5649        7000
SB8-10         .875
22.2td>		 .501-.625
12.7-15.9
SB8-12         1.000
25.4		 .626-.750
16.0-19.1
SB8-14         1.125
28.6		 .751-.875
19.1-22.2
SB8-16         1.250
31.8		 .876-1.000
22.3-25.4
1/8" Large Flange Rivet
SBL4-2         .275
7.0		 .063-.125
1.7-3.2
SBL4-3         .337
8.6		 .126-.187
3.3-4.8
SBL4-4 1/8"(.125)
3.2		 #30(.129-.133)
3.3(3.28-3.38)		 .375
9.53		 .065
1.65		 .400
10.2		 .188-.250
4.9-6.4		 305        410
1356        1820
SBL4-6         .525
13.4		 .313-.375
8.0-9.5
SBL4-8         .650
16.5		 .376-.500
9.6-12.7
5/32" Large Flange Rivet
SBL5-4         .425
10.8		 .188-.250
4.9-6.4
SBL5-6 5/32"(.156)
4.0		 #20(.160-.164)
4.1(4.06-4.16)		 .468
11.9		 .070
1.77		 .550
14.0		 .251-.375
6.5-9.5		 420        600
1860        2665
SBL5-8         .675
17.2		 .376-.500
9.6-12.7
3/16" Large Flange Rivet
SBL6-4         .450
11.5		 .062-.250
3.3-6.4
SBL6-6         .575
14.6		 .251-.375
6.5-9.5
SBL6-8 3/16"(.187)
4.8		 #11(.192-.196)
4.9(4.88-4.98)		 .615
15.62		 .090
2.28		 .700
17.8		 .376-.500
9.6-12.7		 610        870
2713        3870
SBL6-10         .825
21.0		 .501-.625
12.8-15.9
SBL6-12         .950
24.2		 .626-.750
16.0-19.1
SBL6-14         1.075
27.3		 .751-.875
19.1-22.2
SBL6-16         1.200
30.5		 .876-1.000
22.3-25.4
1/8" 120° Countersunk Rivet
SC4-2         .275
7.0		 .062-.125
1.6-3.2
SC4-3         .337
8.6		 .126-.187
3.3-4.8
SC4-4 1/8"(.125)
3.2		 #30(.129-.133)
3.3(3.28-3.38)		 .220
5.59		 .031ref.
1.14		 .400
10.2		 .188-.250
4.9-6.4		 305        410
1356        1820
SC4-6         .525
13.4		 .251-.375
6.5-9.5
SC4-8         .650
16.5		 .376-.500
9.6-12.7
5/32" 120° Countersunk Rivet
SC5-4 5/32"(.156)
4.0		 #20(.160-.164)
4.1(4.06-4.16)		 .281
7.2		 .040 ref.
1.20		 .425
10.8		 .062-.250
1.6-6.4		 420        600
1860        2665
3/16" 120° Countersunk Rivet
SC6-4 3/16"(.187)
4.8		 #11(.192-.196)
4.9(4.88-4.98)		 .350
8.89		 .050 ref.
1.27		 .450
11.4		 .126-.250
3.3-6.4		 610        870
2713        3870
SC6-6         .575
14.6		 .251-.375
6.5-9.5
